TANK LIDS ABAT

CATEGORY:  TANK LIDS AND FILTERS

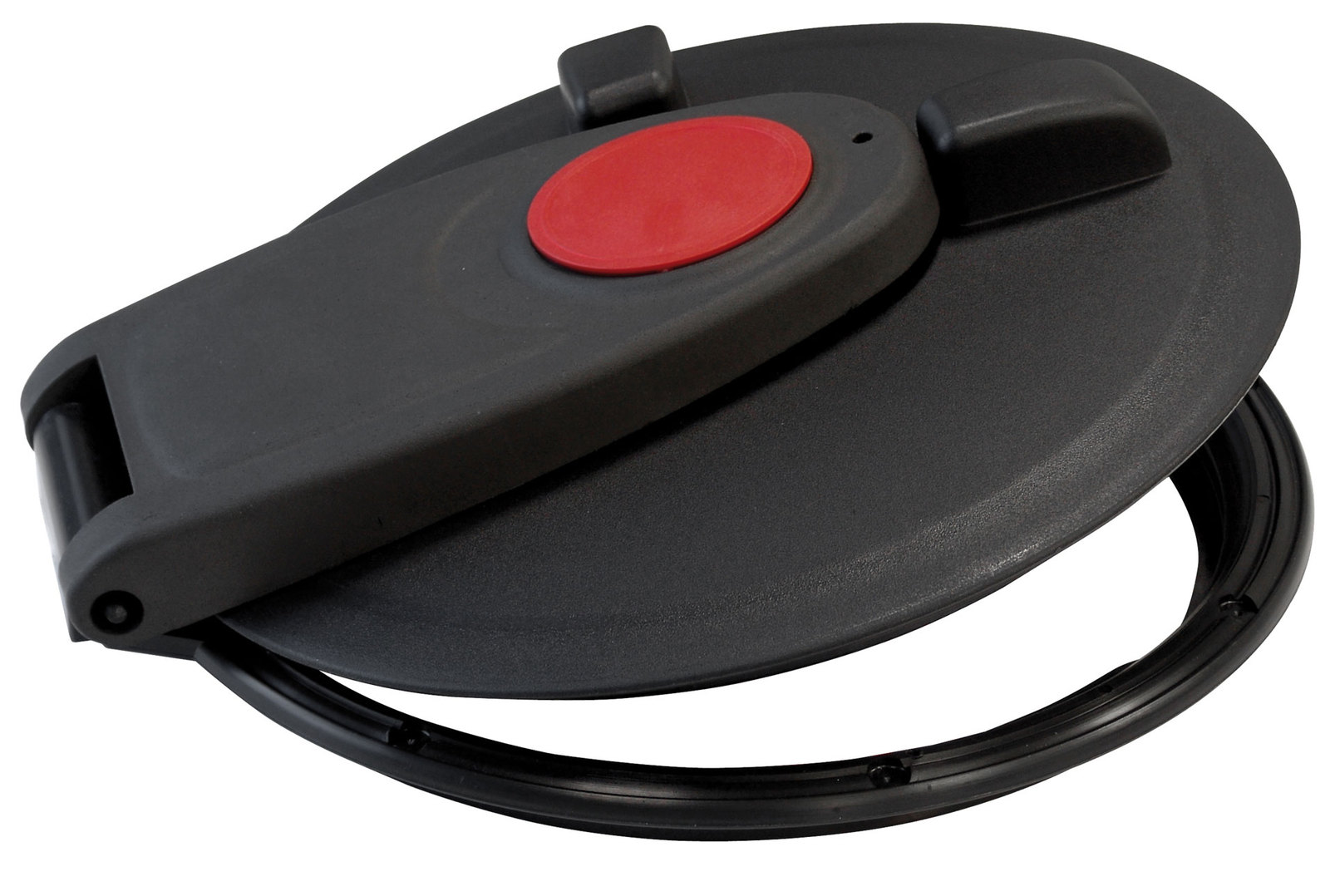

Tank lids - Abat series New hinged tank lid ABAT: -above all suggested for big capacity tanks, on which there are applied pumps at high flow rate until 600 l/1’.

FEATURES

  • The new breather valve grants a perfect air passage, not finding in other tank lids on sale
  • Polypropylene structure
  • Max upending angle: 180°

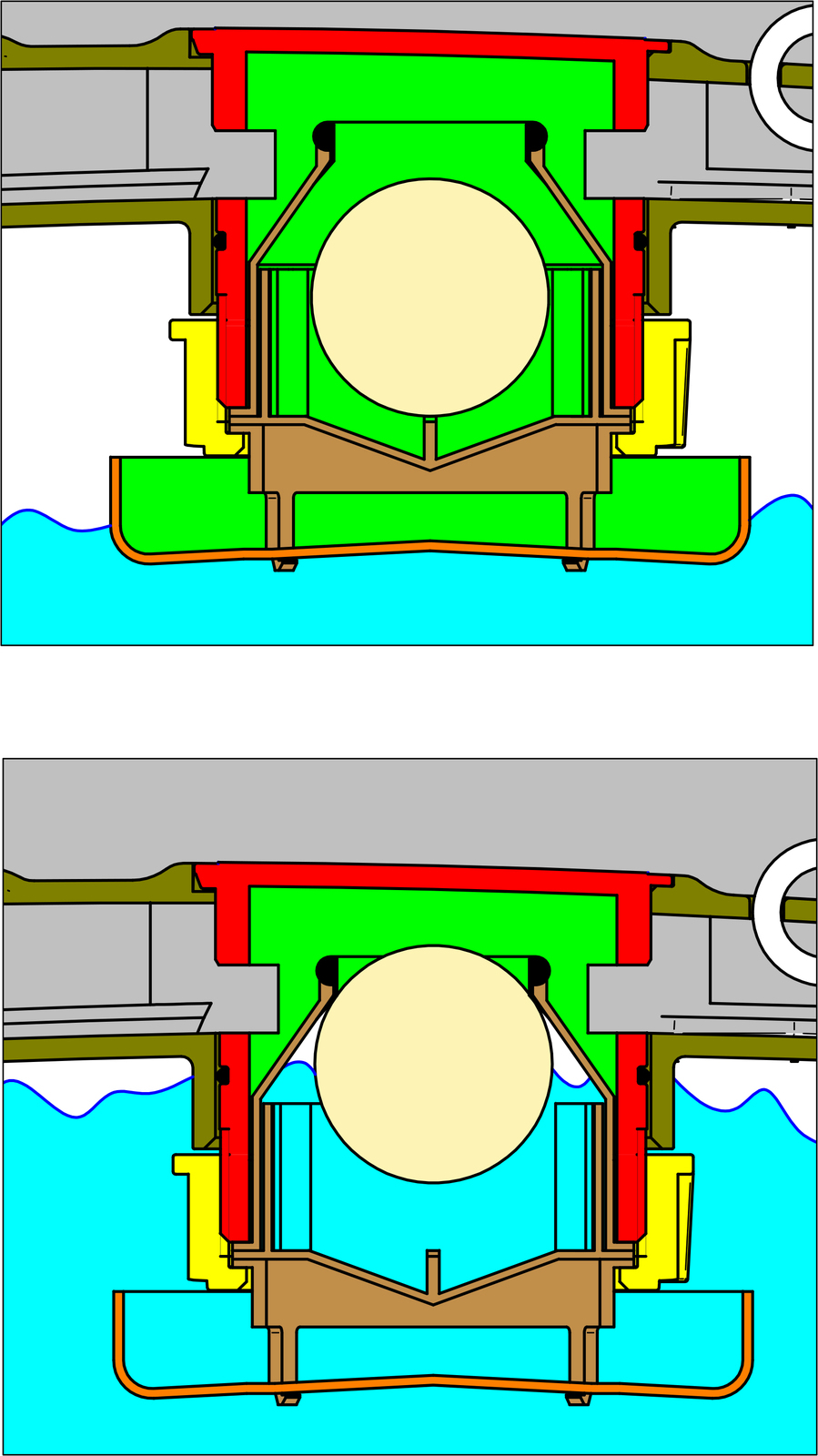

  • Seal guaranteed by a floating ball sitting directly against the gasket
  • Unscrewing angle: 10°
  • Floating ball vent valve

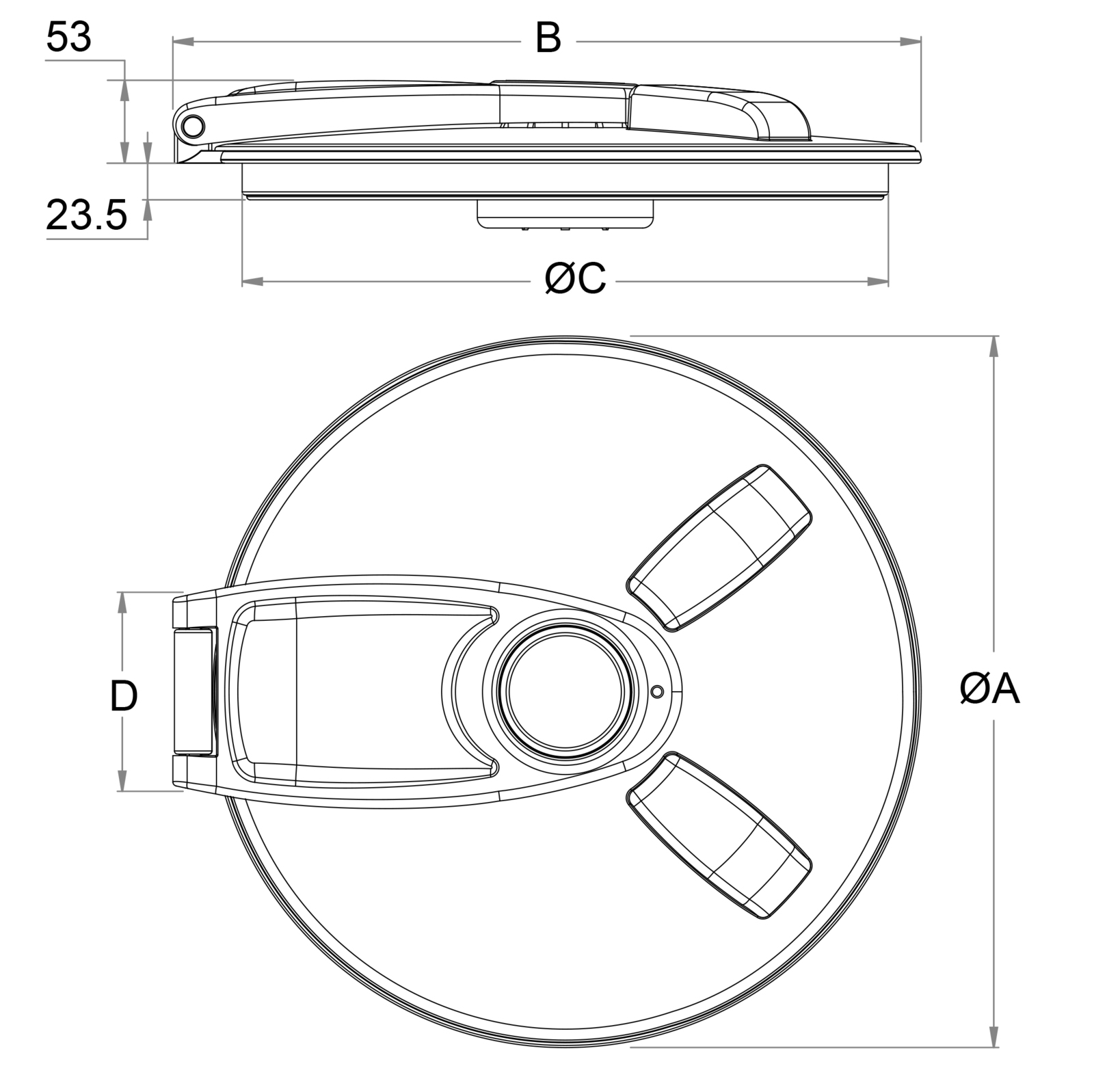

CODEACBD
330.001457mm415mm480mm120mm
330.002357mm320mm380mm120mm

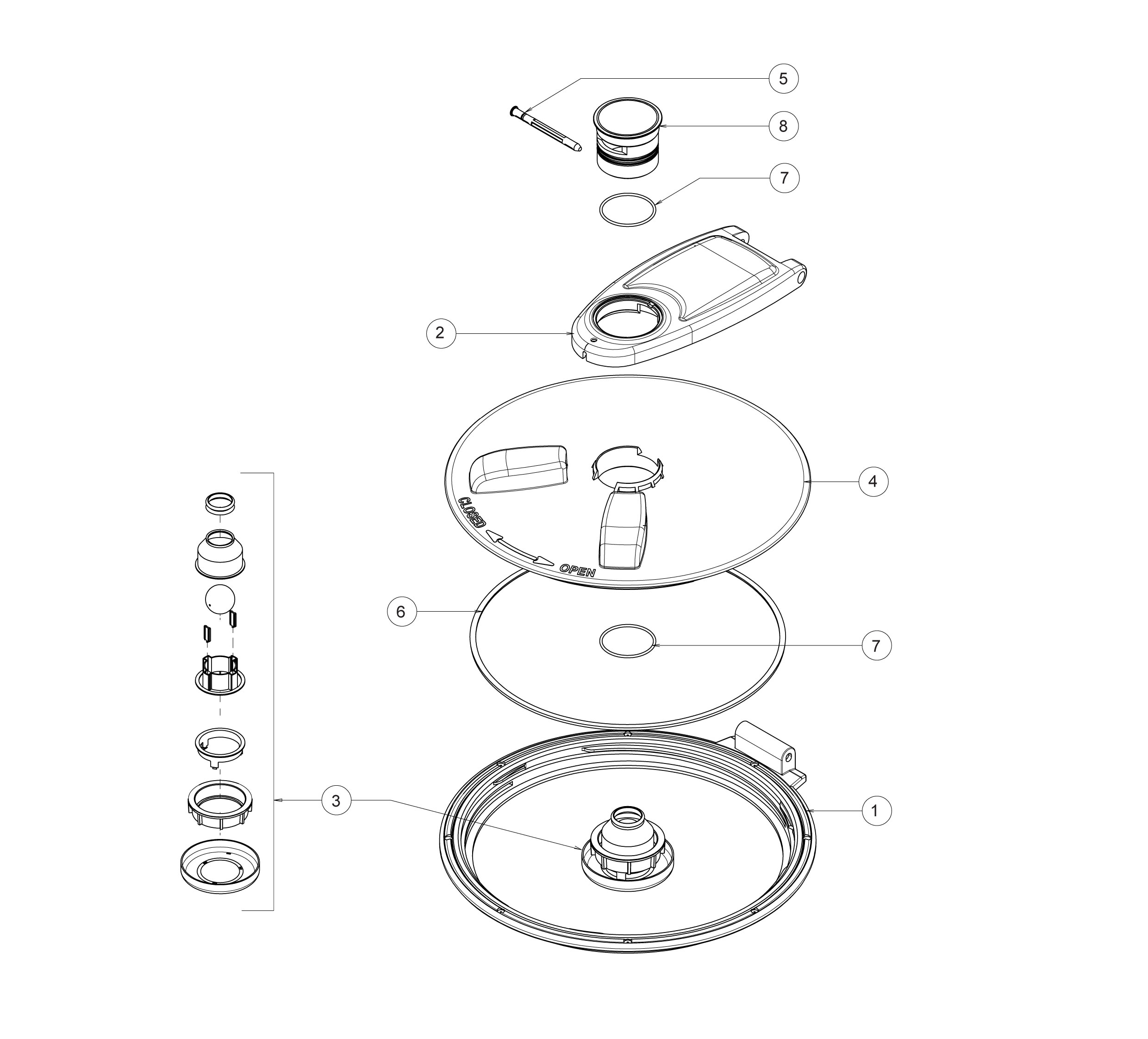

Parts

Parts

Parts TANK LIDS ABAT
A/ACODE FOR 330.001
1A00001004
2B00000014
3K00103004
4C00202037
5P00000000
6G00000014
7G00001221
8C00000096
A/ACODE FOR 330.002
1A00001003
2B00000015
3K00103004
4C00202036
5P00000000
6G00000013
7G00001221
8C00000096
×
