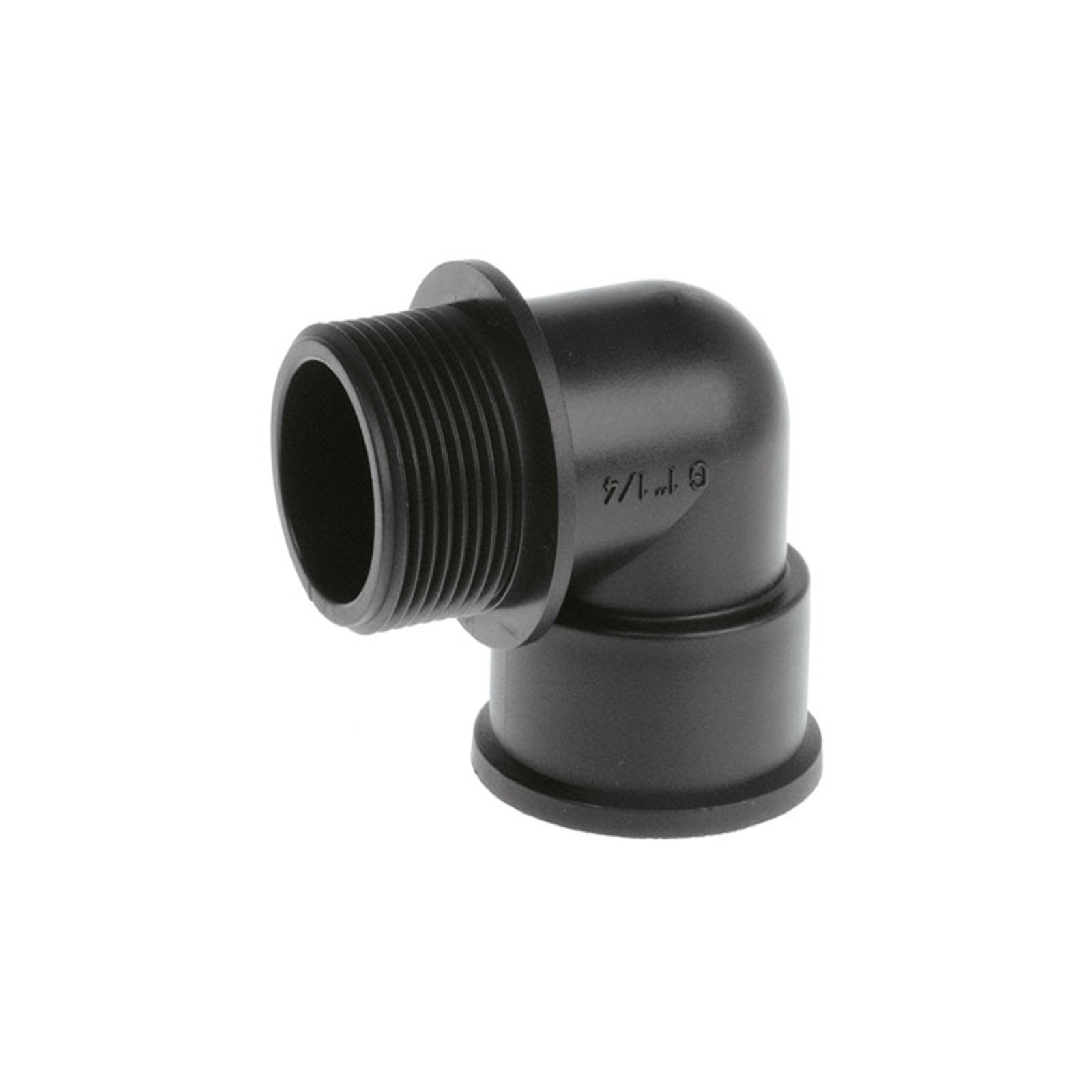

90° ELBOW MALE AND FEMALE THREADS

CATEGORY:	PLASTIC FITTINGS

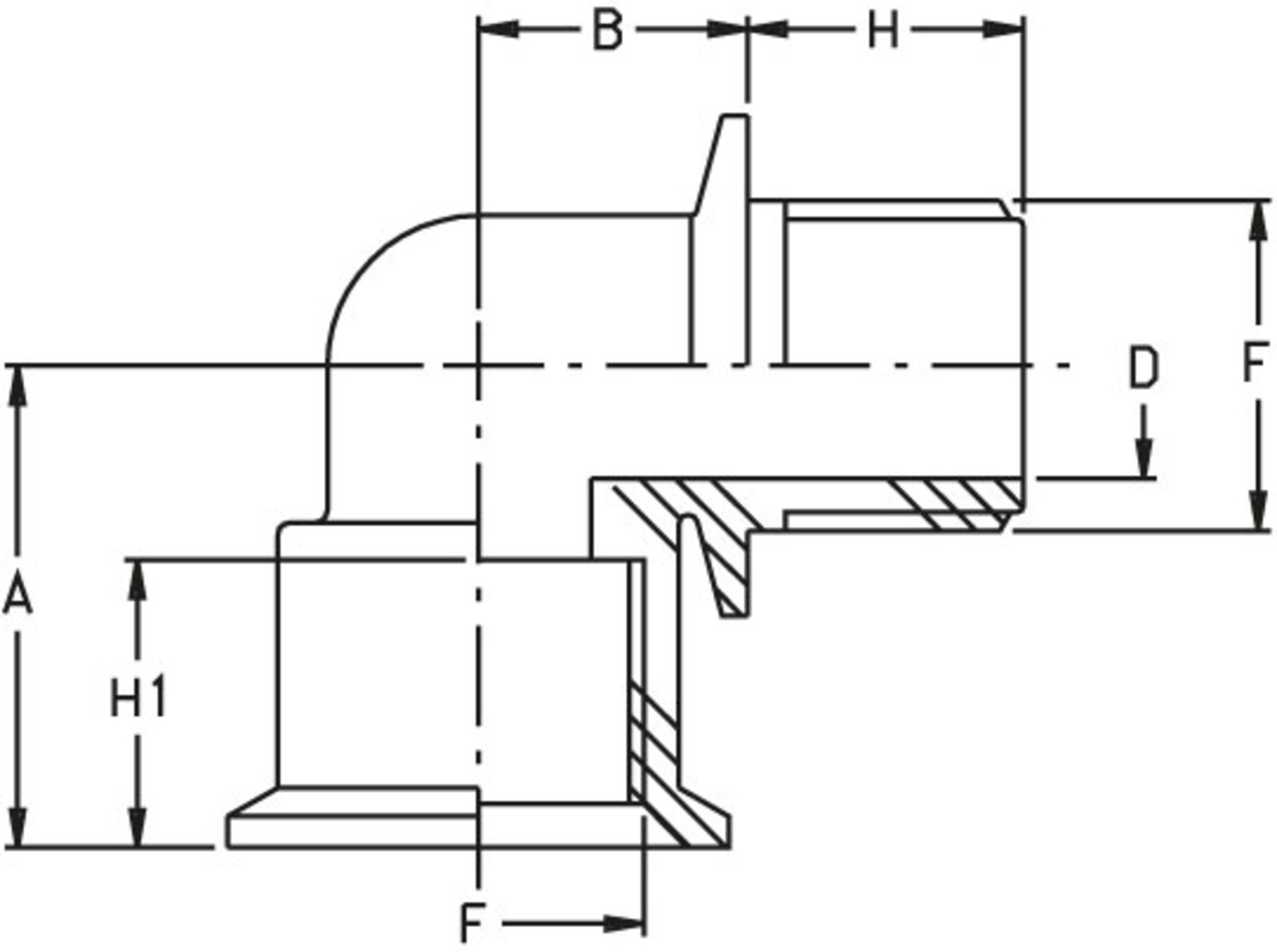

CODE	F	D	H	H1	A	B
525.260	G 1/2''	14 mm	20 mm	21 mm	33.5 mm	13.5 mm
525.270	G 3/4''	18 mm	22 mm	23 mm	38.5 mm	21.5 mm
525.280	G 1''	25 mm	22 mm	23 mm	42.5 mm	24.5 mm
525.290	G 1 1/4''	32 mm	25 mm	21 mm	50 mm	30 mm
525.295	G 1 1/2''	38 mm	25 mm	21 mm	52.5 mm	34 mm
525.296	G 2''	47.5 mm	28 mm	21 mm	62.5 mm	67 mm
